Protomato Expansion Modules
from US$2.00
After all of your feedback regarding the Pixie Dance Floor, we've developed these inexpensive 6HP expansion modules that will allow you to add additional jacks, pots, and switches to your prototyping setup.

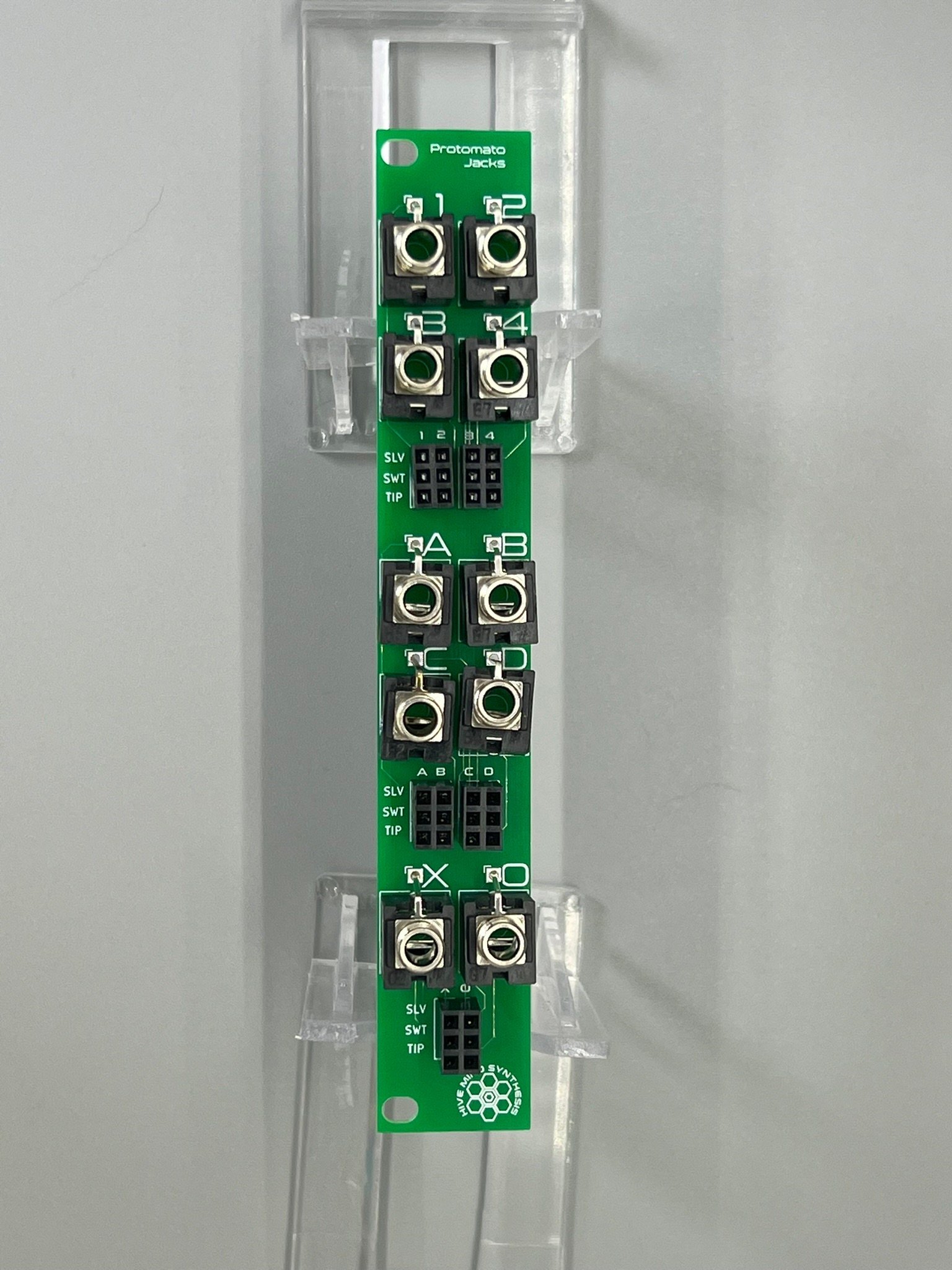

Jacks adds 10 (ten) additional jacks, with connectors for tip, sleeve, and switch on each.

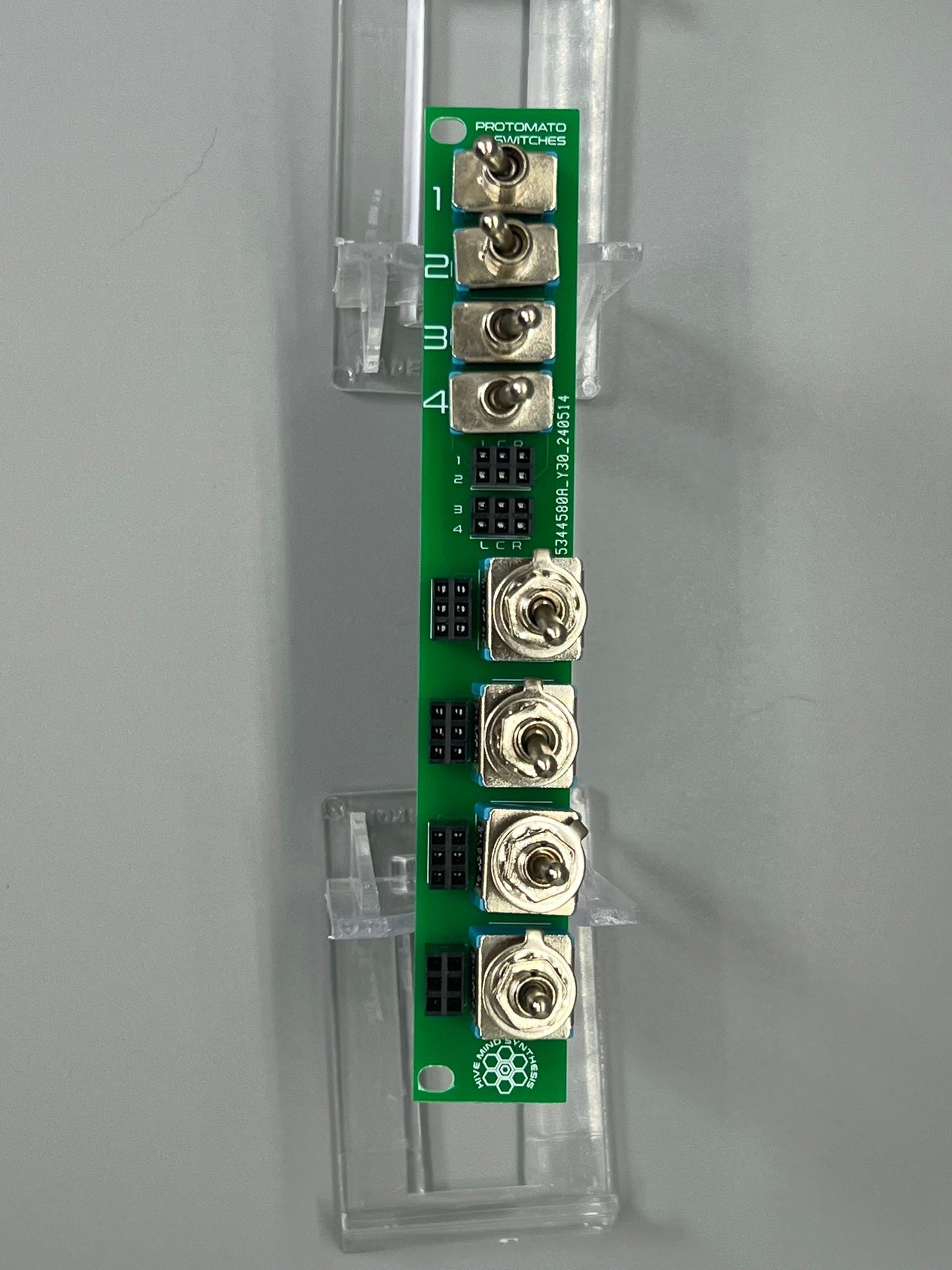

Switches allows you to add 8 additional switches. Four 3-connector switches (commonly DPST) can be added, and there are spaces for 4 6-connector or 3 connector switches as well (commonly DPDT).

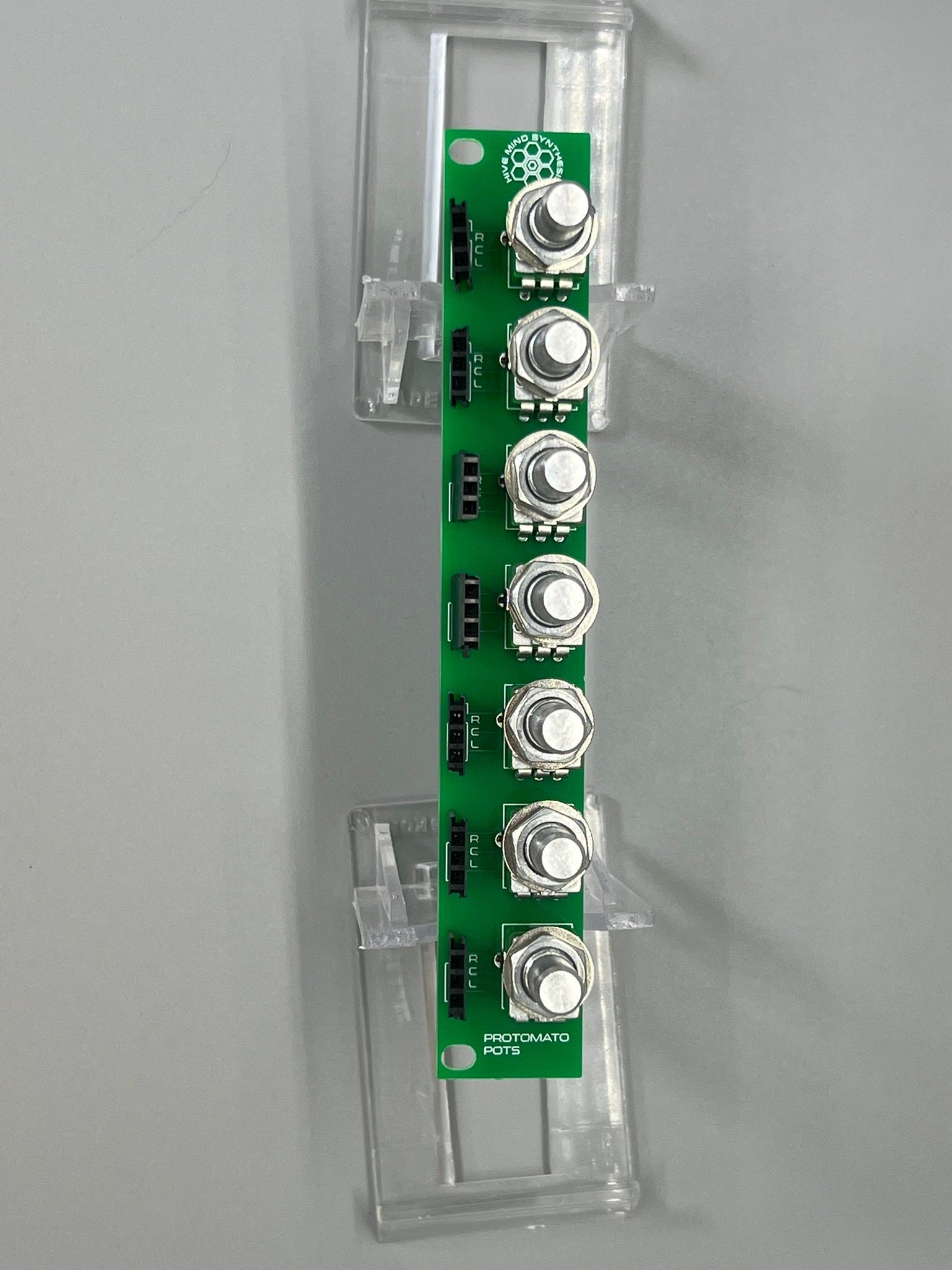

Pots allows you to add 7 potentiometers or encoders in the standard alpha footprint, with connections to the left, center, and right pins.
These are available as either a bare board or with components included. Discount if you buy the set of 3!
BOM:
Jacks - 10x Thonkiconn style jack 5x 2x3 header
Switches - 4x 3 connector switch (kit includes DPST), 4x 3 or 6 connector switch (kit includes DPDT), 6x 2x3 header
POTS - 7x pot/encoder of choice (kit includes B100k), 7x 1x3 header
Jacks adds 10 (ten) additional jacks, with connectors for tip, sleeve, and switch on each.
Switches allows you to add 8 additional switches. Four 3-connector switches (commonly DPST) can be added, and there are spaces for 4 6-connector or 3 connector switches as well (commonly DPDT).
Pots allows you to add 7 potentiometers or encoders in the standard alpha footprint, with connections to the left, center, and right pins.
These are available as either a bare board or with components included. Discount if you buy the set of 3!
BOM:
Jacks - 10x Thonkiconn style jack 5x 2x3 header
Switches - 4x 3 connector switch (kit includes DPST), 4x 3 or 6 connector switch (kit includes DPDT), 6x 2x3 header
POTS - 7x pot/encoder of choice (kit includes B100k), 7x 1x3 header
